Description

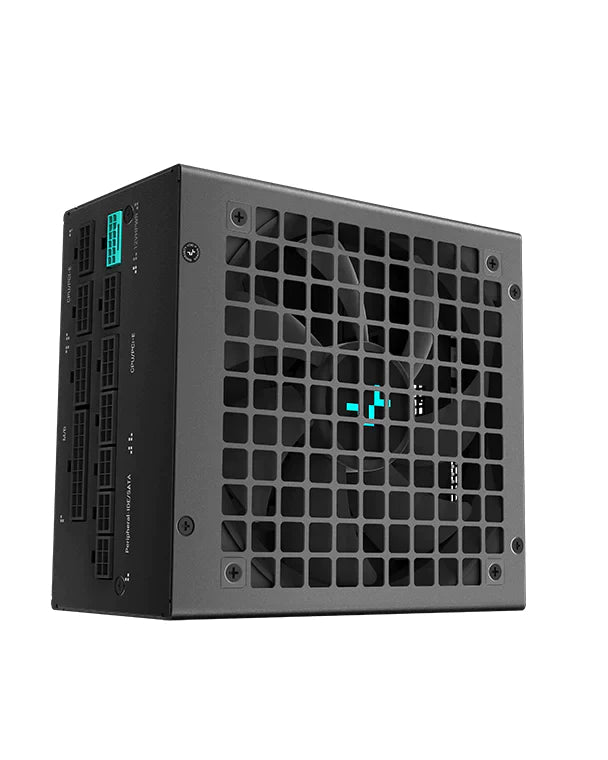

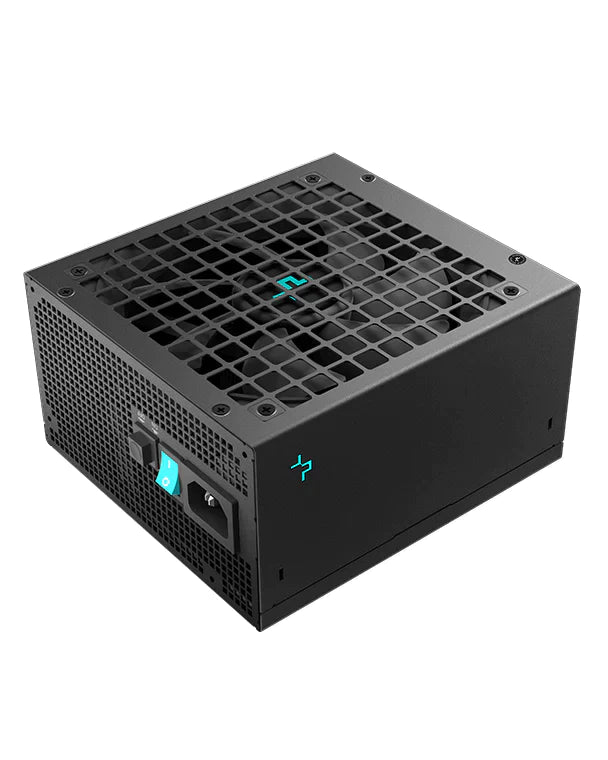

PX1000G
The DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G provides stable power for a wide range of components.
Technical Spec
| Type | ATX12V V3.0 |
| Product Dimensions | 150×160×86mm (W x L x H) |
| Efficiency certification | 80Plus GOLD/Cybenetics_Platinum |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC; |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman |
| MTBF | 100,000 Hours |
| EAN P/N |
