Description
VERSATILE APPLICATIONS

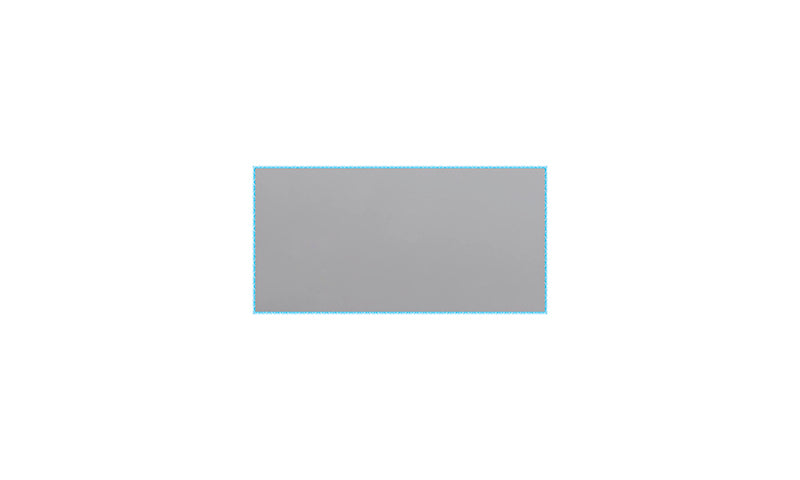

The EK720 thermal pads are designed to conduct heat away from microchips to be dissipated through a heat sink. Replace aging and low-quality interfaces for increased thermal performance on chip components in laptops, graphics cards, game consoles, or in other electronics.
Technical Specification:
| Grease Color | Gray |
| Specifications | 100*50*(1.0mm) |
| Thermal Impedance | 0.8 ℃·cm²/W |
| Thermal Conductivity | 6.0 W/m·K |
| Specific Gravity(25℃) | 3.4±0.2 g/cc |
| Operating Temperature | -40°C to +200°C |
| EAN | 6933412700142 |
| P/N | R-EK720-GYLL10-G-1 |
