Description

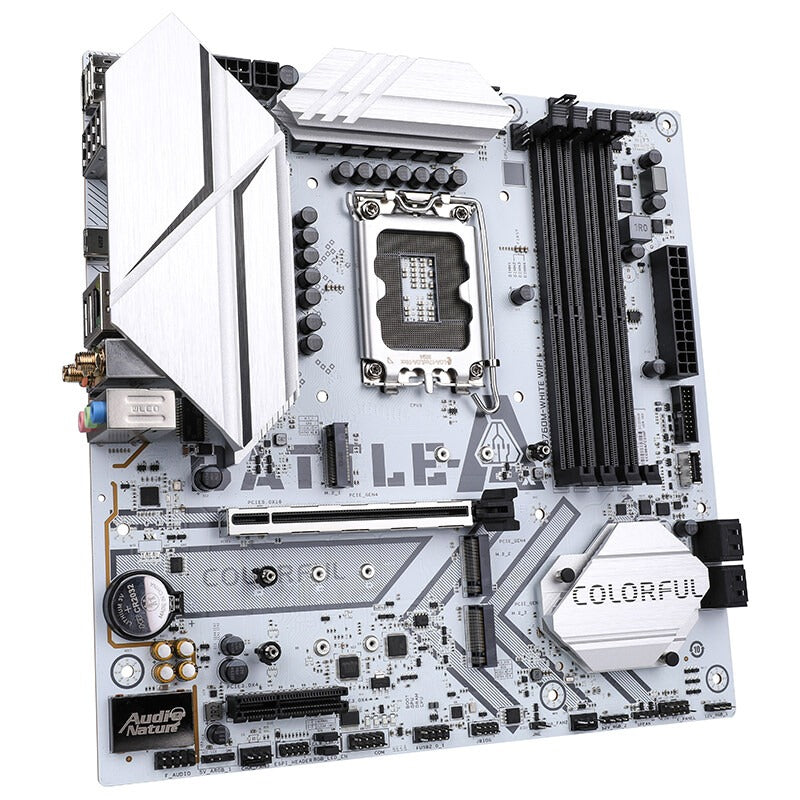

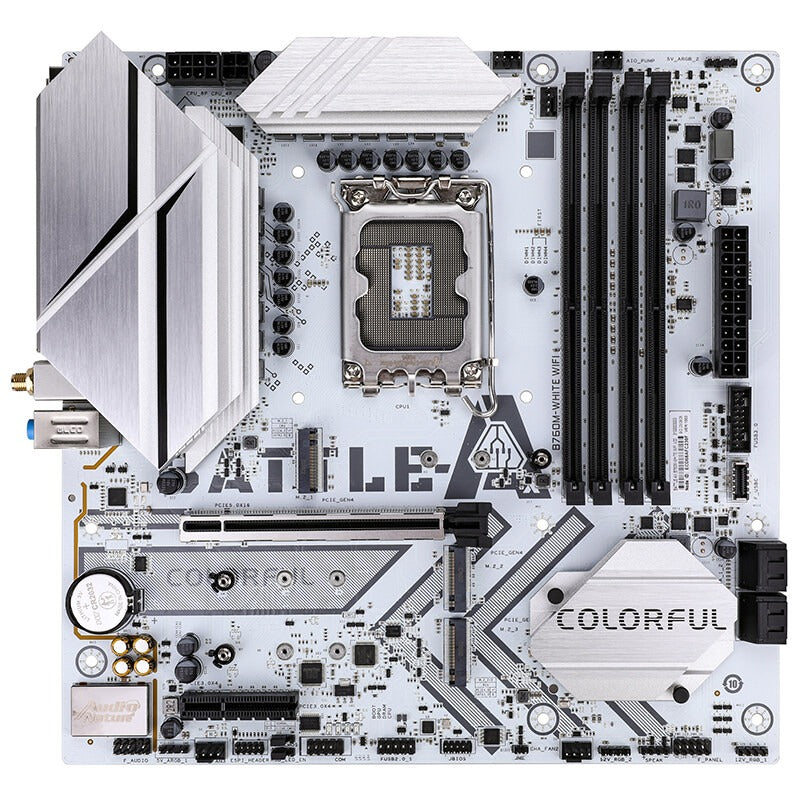

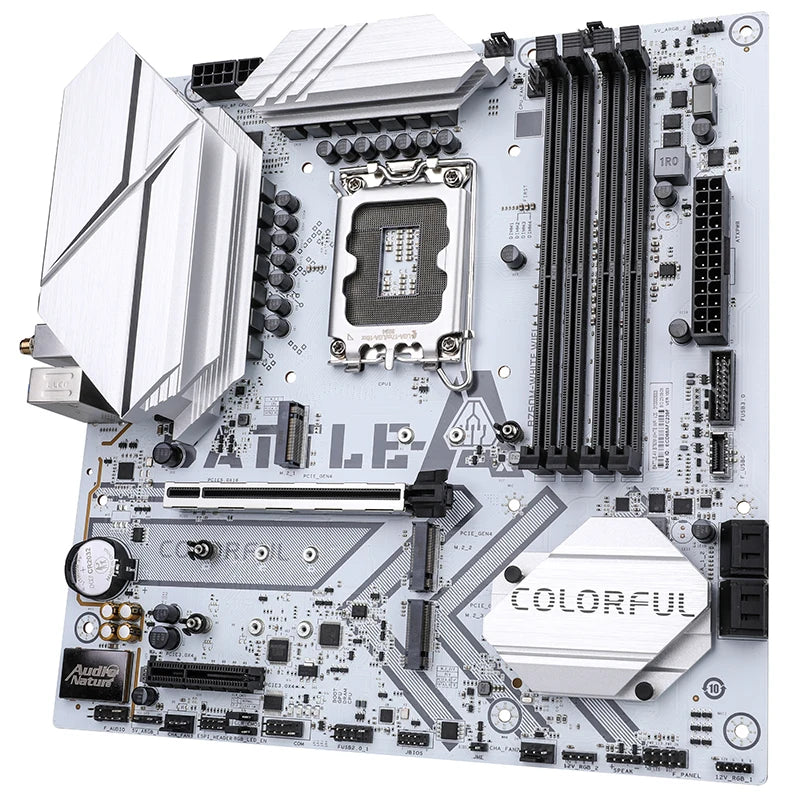

BATTLE-AX B760M-WHITE WIFI V20
Feature Highlights:
- Exclusive custom white motherboard for the Tomahawk series
- 12+1+1 phase reinforced power supply
- Provide 3 PCIe 4.0 x4 M.2 SSD slots
- Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces
- Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2
- Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
- Six protection technologies, more stable product operation
- 200 processes are strictly tested with guaranteed quality
- PCB atomization process comprehensively upgraded
| Model | BATTLE-AX B760M-WHITE WIFI V20 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR4 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory) - Support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200 (OC)/3000/2933/2800/2666/2400/2133MHz memory - Support Extreme Memory Profile (XMP) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_3 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) |

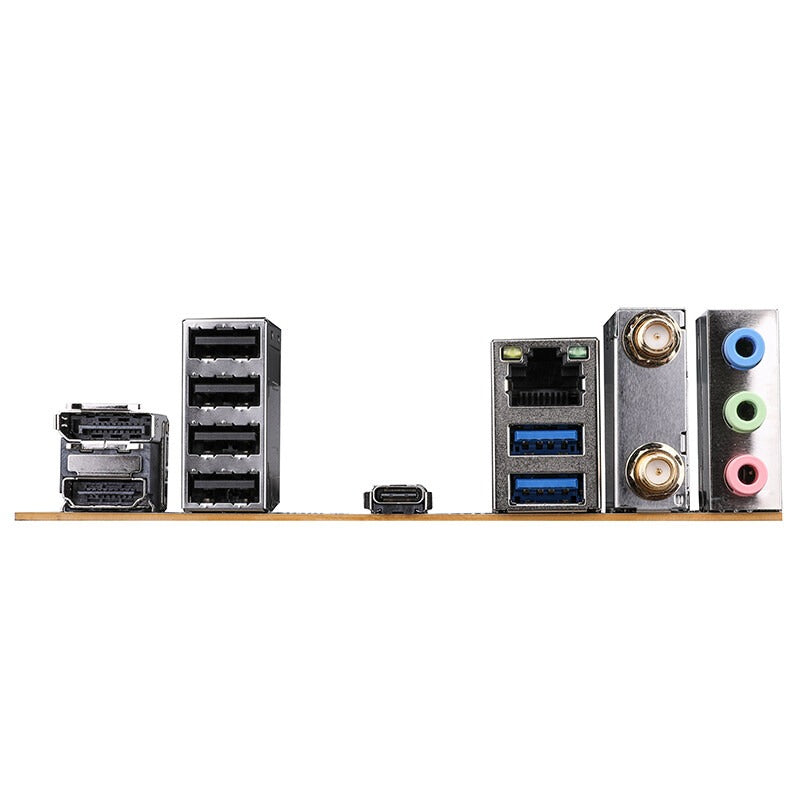

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-C interface -1×DP 1.2 interface, supports up to 4K 60Hz resolution -1×HDMI 2.0 interface, supports up to 4K 60Hz resolution -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -3×System fan pins -1×Water cooling pump pin -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×POST card pin -1×ME write protection jumper -1×RGB light effect control jumper |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to5.1 channels |
| Configuration | M-ATX 245mm x 245mm |
