Description

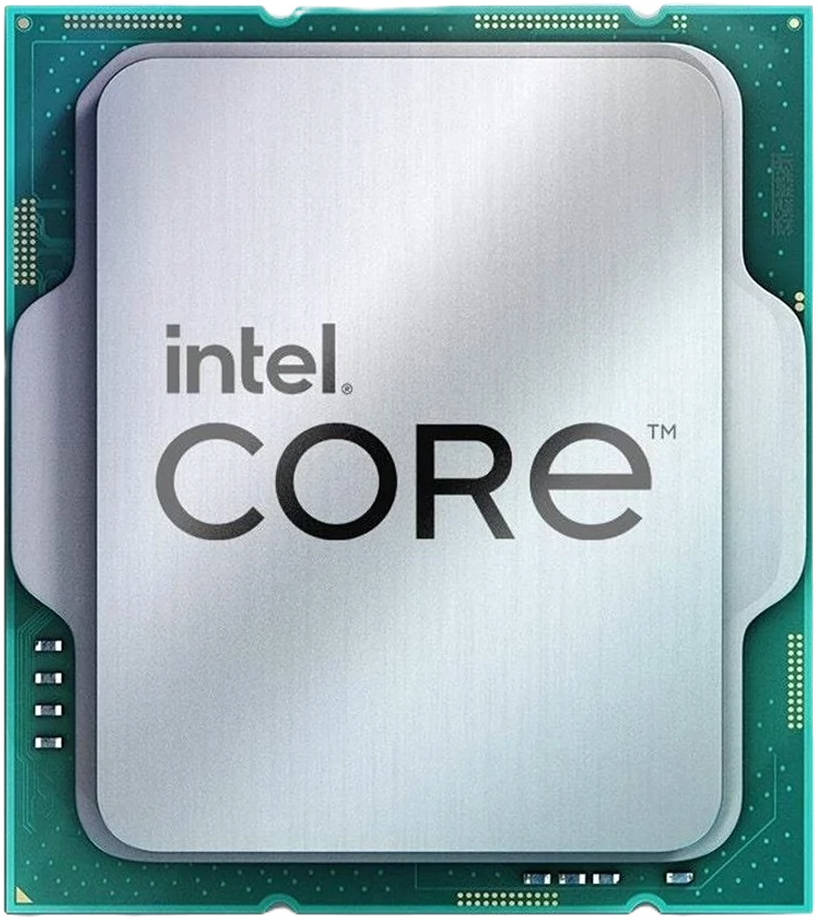

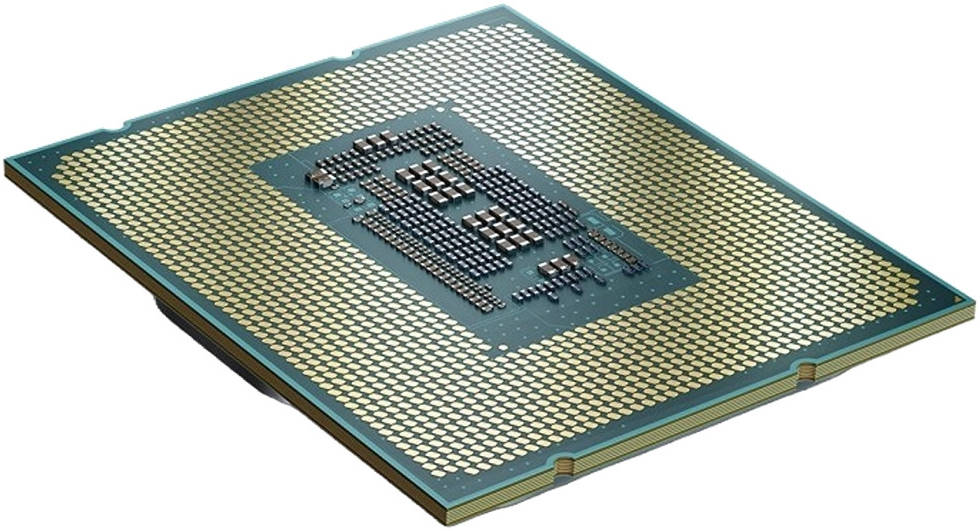

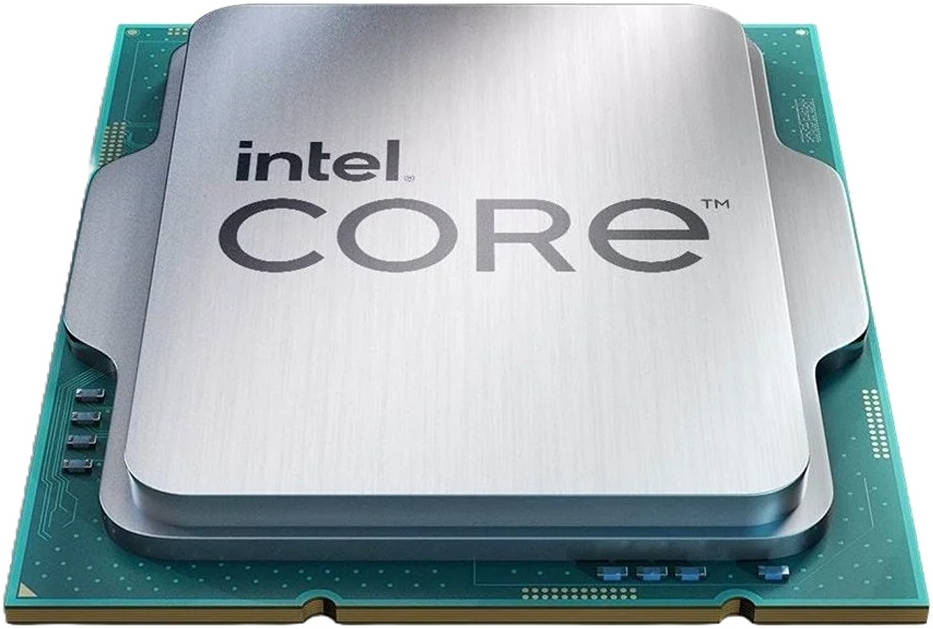

Description for Intel Core i5-14600KF 3.5 GHz 14-Core LGA 1700 14th Gen Processor, 14 Cores & 20 Threads, 24MB Cache Memory, 5.3GHz MaxTurbo Boost, Dual-Channel DDR5-5600 / 192GB Max Memory | BX8071514600KFSRN42
- 14 Cores & 20 Threads
- 3.5 GHz P-Core Clock Speed
- 5.3 GHz Maximum Turbo Boost Frequency
- LGA 1700 Socket
- 24MB Cache Memory
- Dual-Channel DDR5-5600 Memory
- Hybrid Core Architecture
- Unlocked for Overclocking
- 14th Generation (Raptor Lake-S Refresh)
Power up your productivity, gaming, and content creation with the Intel Core i5-14600KF 3.5 GHz 14-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14600KF powers applications and games with six 3.5 GHz Performance-cores while the eight low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 24MB of cache and a 5.3 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. You can overclock this processor for even greater performance. The Core i5-14600KF also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 5600 MHz.
The Core i5-14600KF does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. Please note that a thermal solution is NOT included.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.
Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
|
|
|
They are designed for the needs of today’s gamers. - Performance-cores: Unleashes the capability to optimise the latest games and gaming software. - Efficient-cores: Provides multitasking power to work, play, and, most importantly, game together. |
Overclock with ease
Customise your performance to meet your precise needs with the Intel® Extreme Tuning Utility.*3.
|
|
|
Game smarter Expanded Intel® Smart Cache sizes accelerate your processor for stable gameplay and higher, more consistent FPS. |
Realise your dream build.
Intel® Core™ processors offer versatility with support for: - 600 or 700 series motherboards - DDR4 or DDR5 memory*4 - Up to PCIe Gen 5 components*6 - Up to Wi-Fi 7 networks*5 |
|
|
Power your imagination. Stream your favourite game, edit videos or podcasts, or make something beautiful. - Intel® Thread Director dynamically assigns tasks so you can do it all without slowing down.*2 - Performance hybrid architecture can easily run streaming software in the background while prioritising gameplay.*1 |
Choose the Intel® Core™ processor for the way you play. - Intel Core i9: Peak performance for elite gaming and content creation. - Intel Core i7: Game, stream, and record without interruption. - Intel Core i5: Versatile performance for immersive gaming. |
Product Collection | Intel® Core™ i5 Processors (14th gen) |
Code Name | Products formerly RAPTOR LAKE |
Vertical Segment | Desktop |
Processor Number | i5-14600KF |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 14 |
# of Performance-cores | 6 |
# of Efficient-cores | 8 |
Total Threads | 20 |
Max Turbo Frequency | 5.3 GHz |
Performance-core Max Turbo Frequency | 5.3 GHz |
Efficient-core Max Turbo Frequency | 4 GHz |
Performance-core Base Frequency | 3.5 GHz |
Efficient-core Base Frequency | 2.6 GHz |
Cache | 24 MB Intel® Smart Cache |
Total L2 Cache | 20 MB |
Processor Base Power | 125 W |
Maximum Turbo Power | 181 W |
Supplemental Information | |
Marketing Status | Launched |
Launch Date | Q4'23 |
Embedded Options Available | No |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 192 GB |
Memory Types | Up to DDR5 5600 MT/s |
Up to DDR4 3200 MT/s | |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 89.6 GB/s |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4.0 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020A |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3.0 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Technology ‡ | 2.0 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Specifications for Intel Core i5-14600KF 3.5 GHz 14-Core LGA 1700 14th Gen Processor, 14 Cores & 20 Threads, 24MB Cache Memory, 5.3GHz MaxTurbo Boost, Dual-Channel DDR5-5600 / 192GB Max Memory | BX8071514600KFSRN42

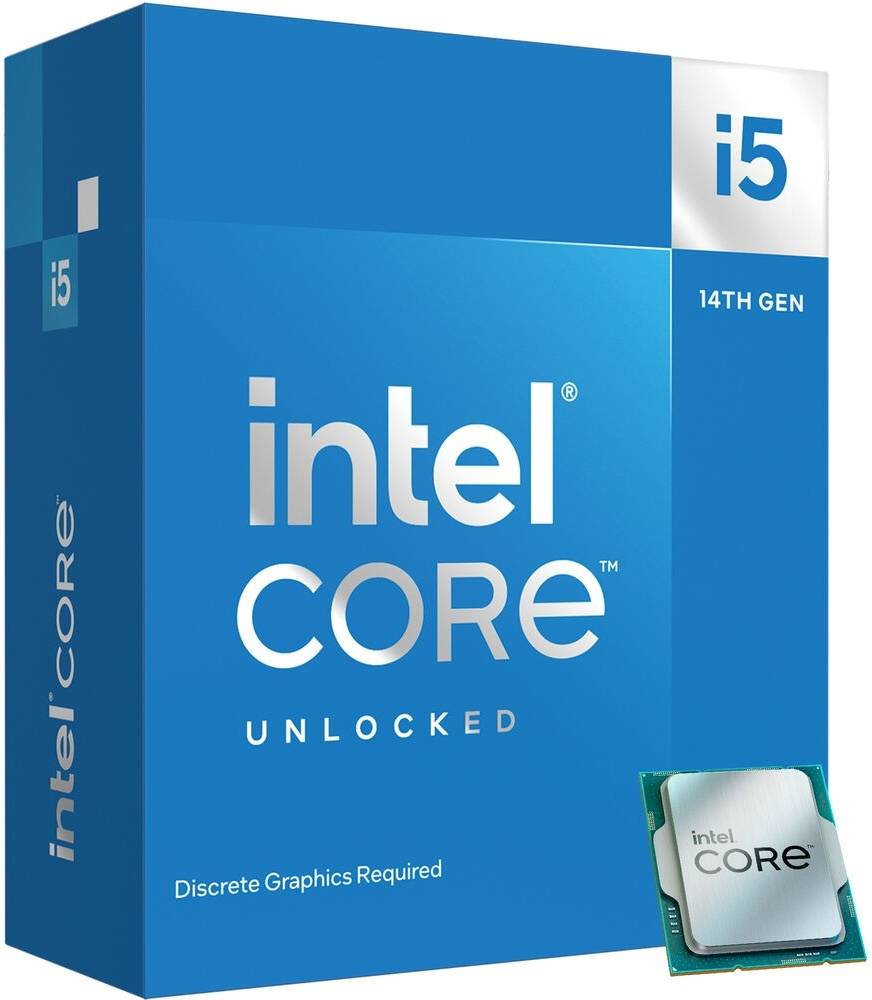

- i5-14600KF Box
- 129004
- #3 in CPUs / Processors
- 18 October, 2023
- 0.15 Kg
- 4.50 cm x 10.00 cm x 11.51 cm
- Intel Core i5
- Intel
- Socket 1700
- 14-Cores
- 20
- 20 MB
- 24 MB
- -
- Cooling device not included - processor only
- 20
- 181 W
- 10 nm
- Yes
- Yes
- 192 GB
- No
