Description

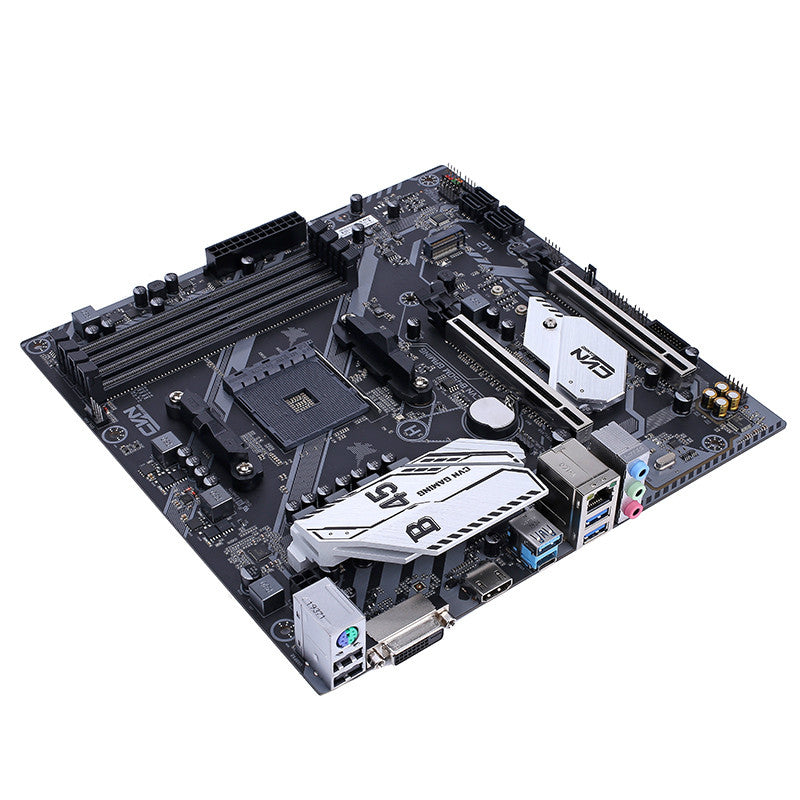

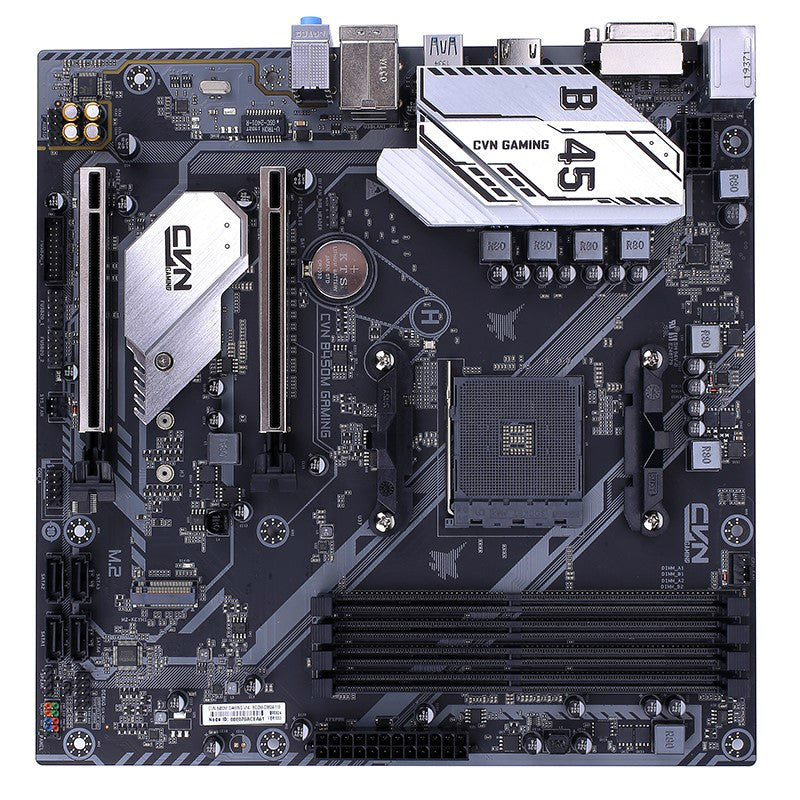

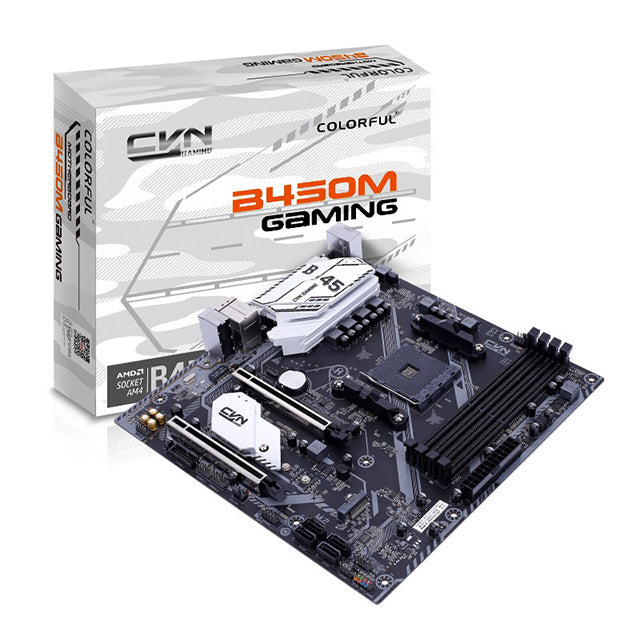

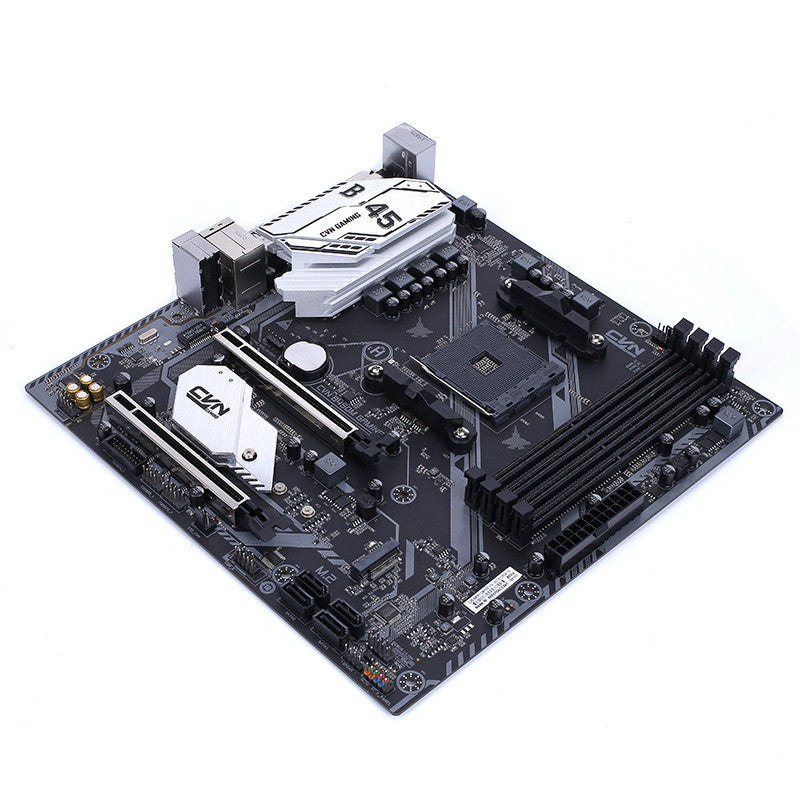

CVN B450M GAMING V14
◆Supports AMD Socket AM4 and Ryzen Series CPUs
◆4*DIMM slots
*Supports Dual Channel DDR4 3200(OC)/3000(OC)/2800(OC)/2666/2400/2133MHz memory
◆4*SATA3.0 ports
◆1000M LAN
◆Realtek ALC662 6-ch audio chipset
◆DVI+HDMI ports
◆6*USB2.0 ports(4 through header)
◆4*USB3.0 ports(1 Type-A,1 Type-C and 2 Type-A through header)
◆2*USB3.1 ports
◆Audio isolated LED light
◆1*4PIN 12V RGB LED header
◆support RAID 0、1、10
| Motherboard Series | AMD chipset,CVN series |
| Chipset | AMD B450 |
| Processor | Supports AMD Socket AM4 and Ryzen Series CPUs |
| Memory | 4 DIMM slots，support dual channel DDR4 3200（OC）/3000（OC）/2800（OC）/2666/2400/2133MHz memory |
| Graphics Support | 1*PCI Express3.0X16 slot |
| SATA Ports | 4*SATA3.0 6Gb/s ports |

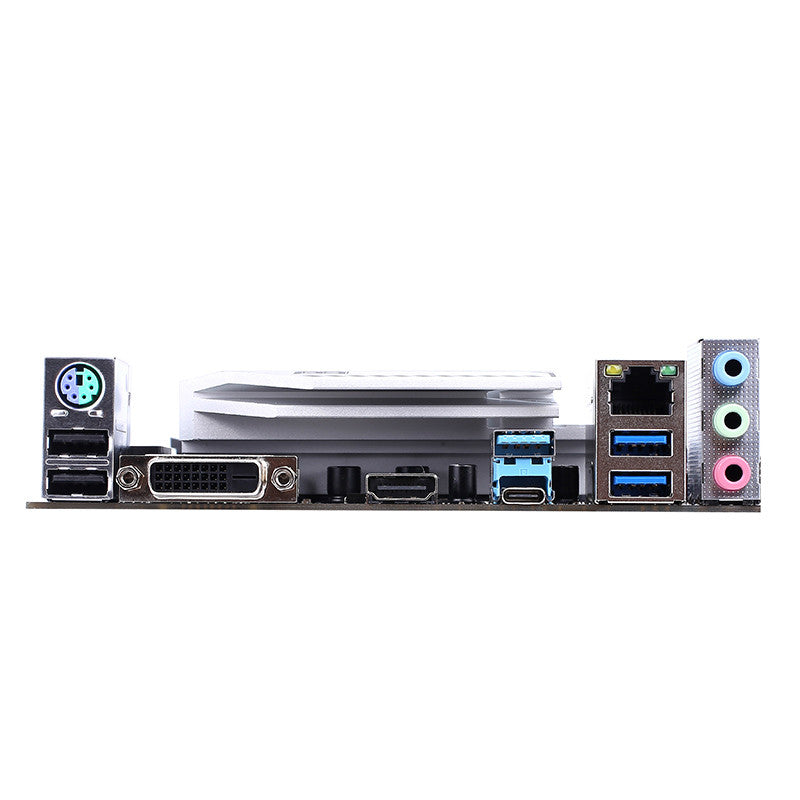

| Board I/O | 1*PS2 ports,1*DVI port,1*HDMI port,1*RJ45 lan，3*audio ports,6*USB2.0,4*USB3.0 and 2*USB3.1(including headers) |
| Expansion Slots | 1*PCI Express 3.0x4 slot,1*M.2 slot(Only SATA SSD is supported when using AMD 7th generation Athlon processor); |
| BIOS | 128M UEFI |
| Power Management | support 95W processors |
| Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | Onboard 1000M LAN，Provides 10/100/1000Mb Ethernet |
| Audio | 6-Channel audio chipset |
| Configuration | 245 x 245 mm mATX |
