Description
Description for SilverStone DA850R Fully Modular Power Supply, 80 PLUS Gold, 850W ATX 3.0 & PCIe 5.0, Active PFC, Silent 120mm Fan, Advanced Protections, 12V-2x6 PCIe Connector, Black | SST-DA850R-GMA
DA850R Gold
80 PLUS Gold 850W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- 80 PLUS Gold efficiency certification
- Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 50℃operating temperature
- Silent running 120mm fan with advanced semi-fanless operation
- Compact design with a 140mm depth for easy integration
Specifications
| Color | Black (lead-free paint) | ||||
| Max. DC Output | 850W | ||||
| Power Density | 471W/L | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 20A | 20A | 70.8A | 3A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | +5%-7% | ±5% | ±8% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
| Combined +3.3V & +5V | 100W | ||||
| Combined +12V | 850W | ||||
| Input Voltage | 90 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.9 at full load) | ||||
| Efficiency | ≥87% & <89% | ||||
| MTBF | 100,000 hours | ||||
| Operating Temperature | 0°C ~ 50°C | ||||
| Protection |
Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |
||||

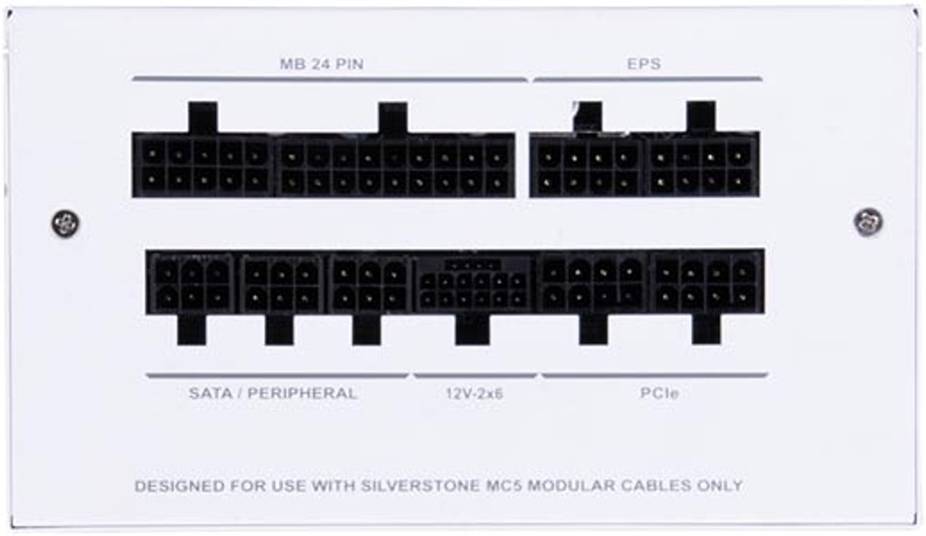

| Connectors |
1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12V-2x6 connector 8 x SATA connectors 4 x 4-Pin Peripheral connector ※ DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables. |
||||
| Cooling System | Silent 120mm fan | ||||
| Noise Level | 0 dBA minimum | ||||
| Certification | 80 PLUS Gold | ||||
| Form Factor | ATX (PS2) | ||||
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) | ||||
| 5.91" (W) x 3.39" (H) x 5.51" (D) | |||||
| Weight | 2.13 kg | ||||
Delivered by May 27 in UAE
We offer express delivery to Dubai, Abu Dhabi, Al Ain, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, UAE for SilverStone DA850R Fully Modular Power Supply, 80 PLUS Gold, 850W ATX 3.0 & PCIe 5.0, Active PFC, Silent 120mm Fan, Advanced Protections, 12V-2x6 PCIe Connector, Black | SST-DA850R-GMA.
Best Price Guarantee
We offer the best price for SilverStone DA850R Fully Modular Power Supply, 80 PLUS Gold, 850W ATX 3.0 & PCIe 5.0, Active PFC, Silent 120mm Fan, Advanced Protections, 12V-2x6 PCIe Connector, Black | SST-DA850R-GMA in Dubai, UAE. Buy now with the best price!
Specifications for SilverStone DA850R Fully Modular Power Supply, 80 PLUS Gold, 850W ATX 3.0 & PCIe 5.0, Active PFC, Silent 120mm Fan, Advanced Protections, 12V-2x6 PCIe Connector, Black | SST-DA850R-GMA
General
Brand
Model
- DA850R Gold
Microless SKU
- 129345
Date first available
- 25 October, 2023
Shipping Weight
- 2.45 Kg
Shipping Dimensions
- 11.50 cm x 28.00 cm x 19.01 cm
Form Factor
- ATX
Power
- 850 W
Efficiency
- 80 Plus Gold
Modular
- Full Modular
PFC
- Active
Fanless
- No
Color
- Black
Length
- 140 mm
Connectors
Main Connectors
- 1 x 24 pin ATX
EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
SATA Power Connectors
- 8
Molex Connectors
- 4
PCIe 6-Pin Connectors
- 0
PCIe 6+2-Pin Connectors
- 4
PCIe 8-Pin Connectors
- 0
PCIe 12-Pin Connectors
- 0
PCIe 12+4-Pin 12VHPWR Connectors
- 1
