Description
Description for ZOTAC GAMING GeForce RTX 4060 Twin Edge Graphics Card, 8GB GDDR6 128-bit Memory, 2460 MHz Boost Clock, 17 Gbps Memory Clock, PCI E 4.0 x8, 3072 CUDA Cores, 3 x DP 1.4a / 1 x HDMI | ZT-D40600E-10M

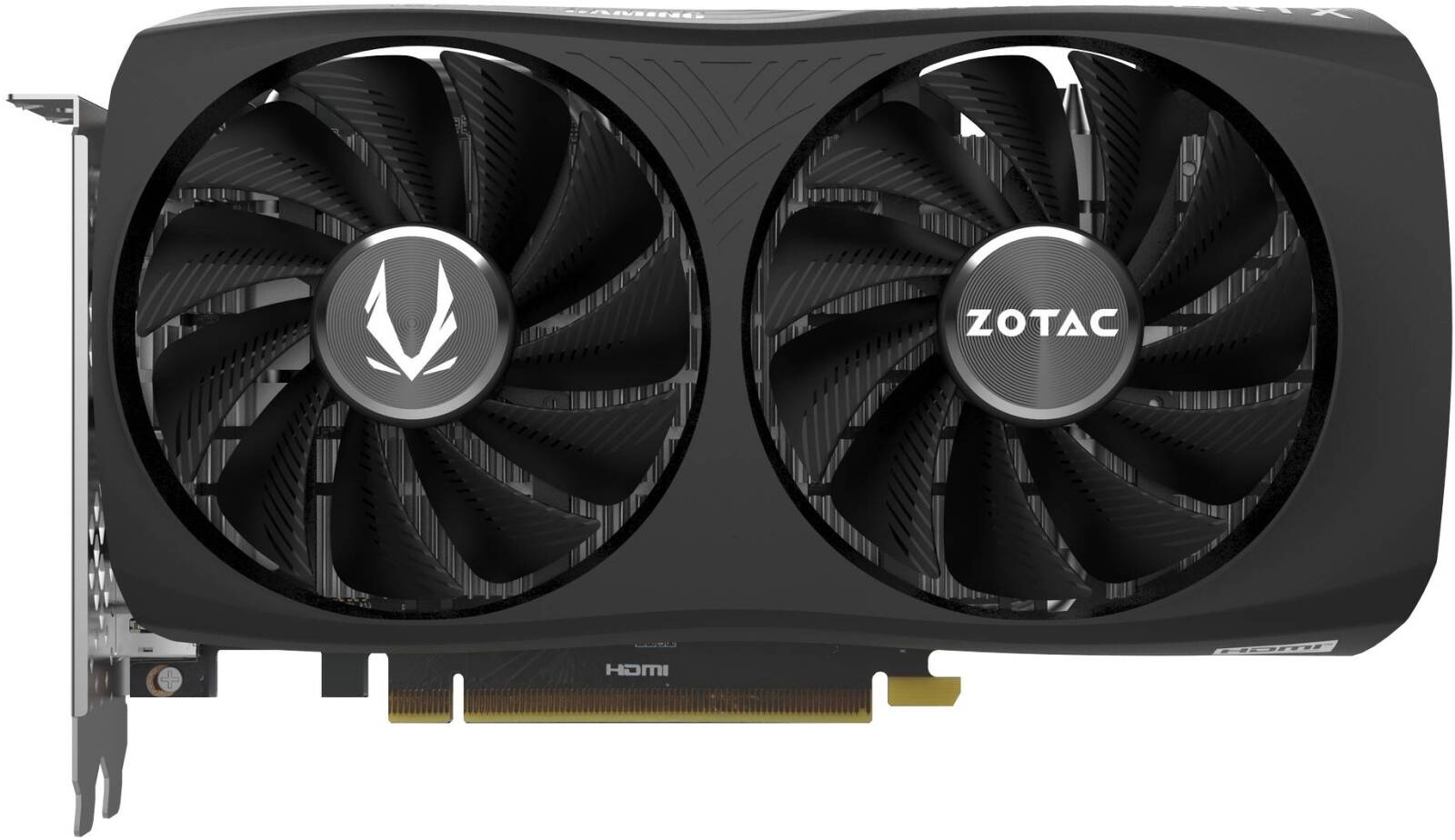

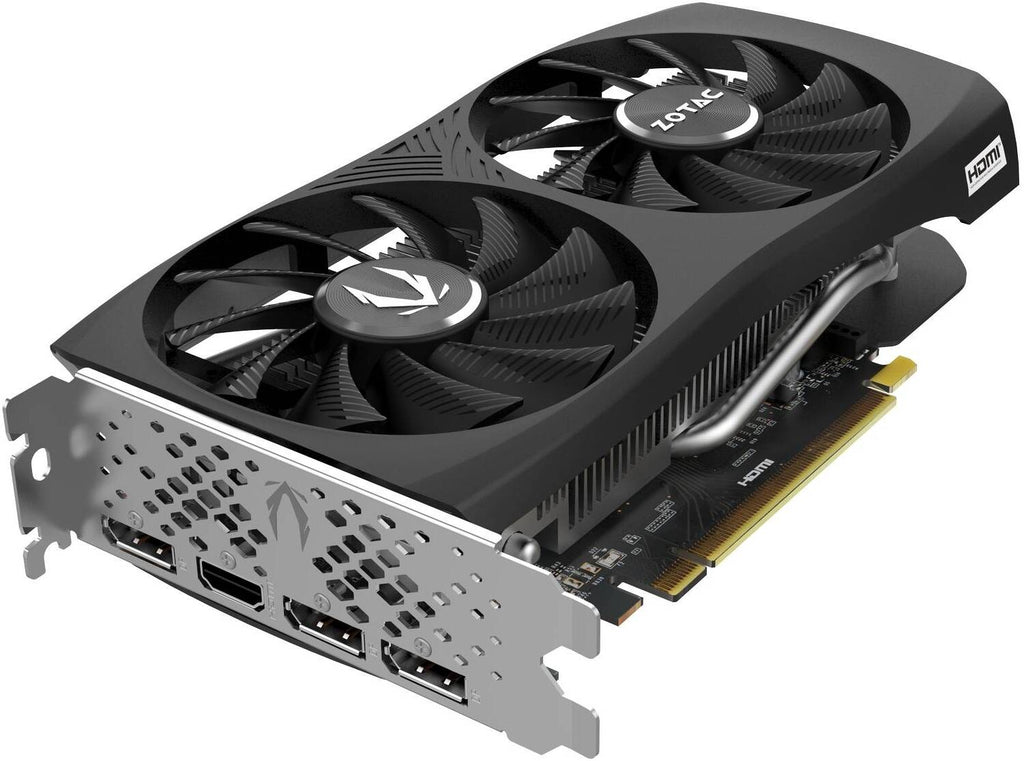

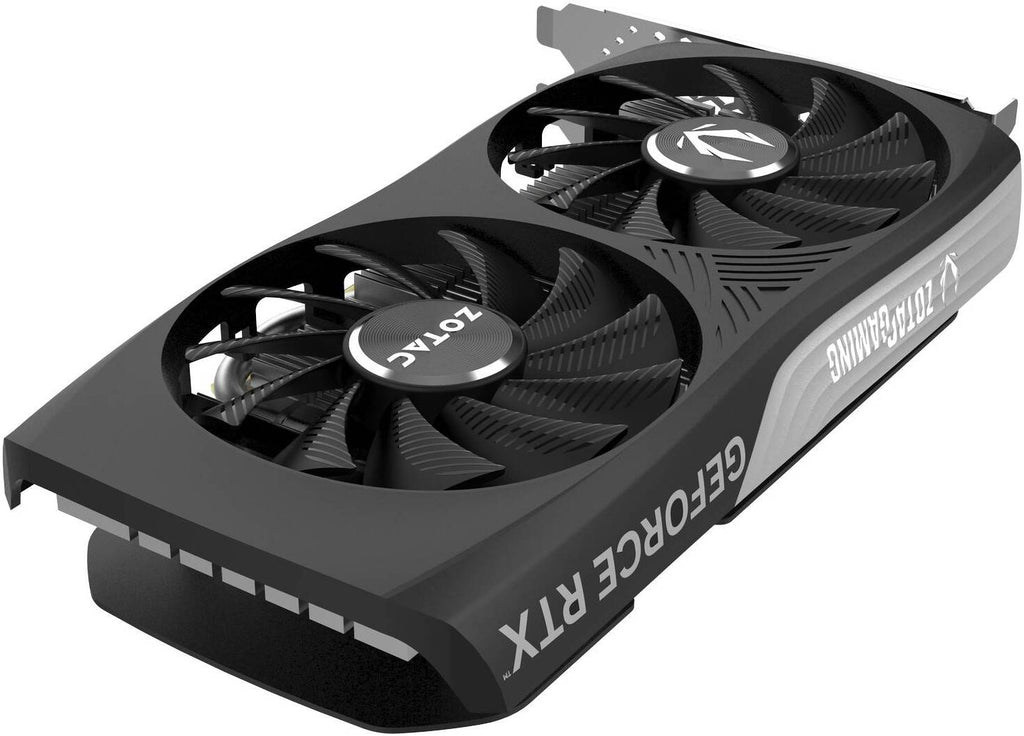

ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge
The ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge is a compact and capable graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2 slot size, it's an excellent choice for those who want to build a SFF gaming PC capable of smooth framerate and 1080p performance in the latest title releases.
Key Features
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- Compact design with 2 Slot footprint

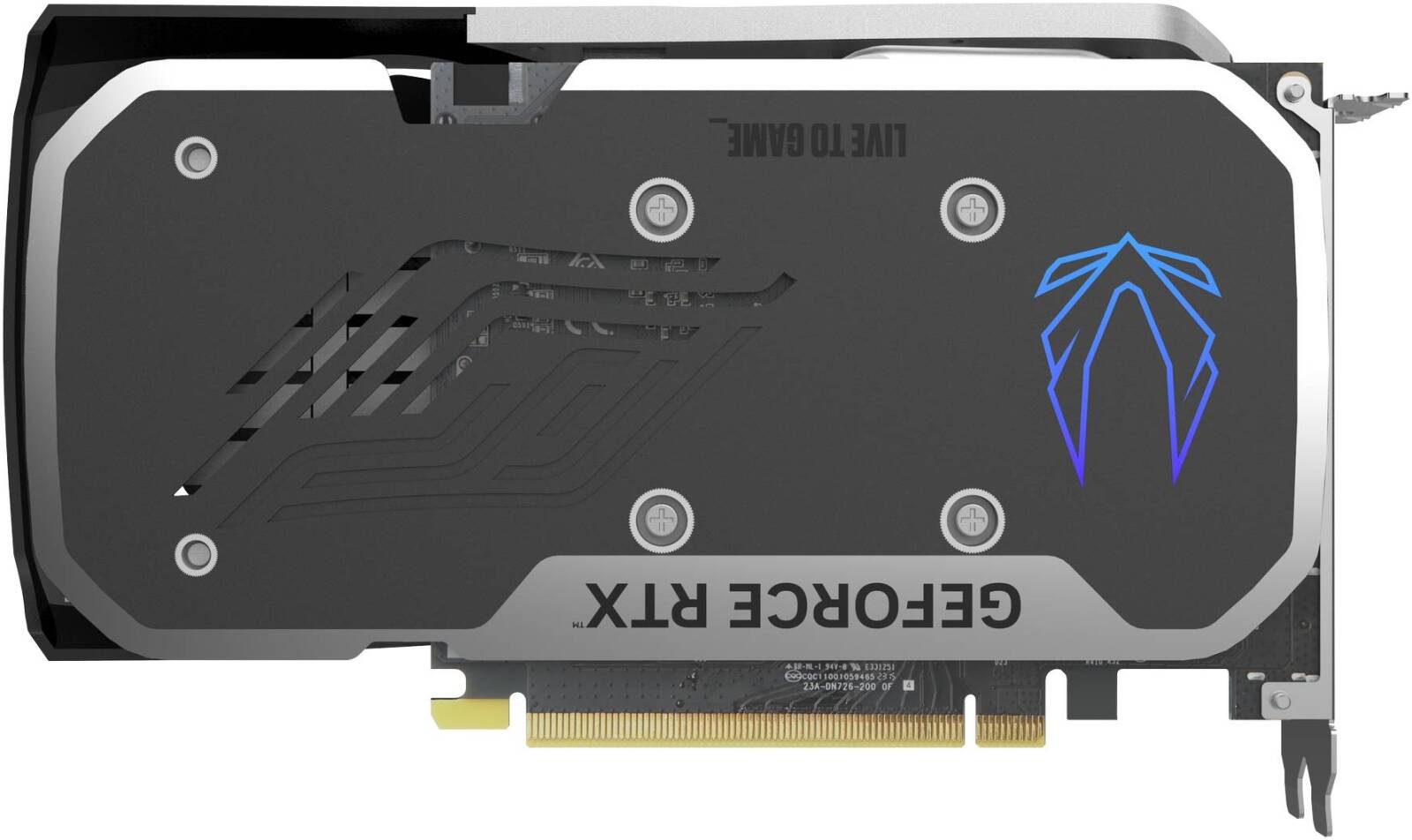

- Metal Backplate
- Freeze Fan Stop
- 221.4 mm / 8.7 in length
- 8-pin PCIe power connector
Specifications
| GPU | GeForce RTX 4060 |
| CUDA Cores | 3072 |
| Video Memory | 8GB GDDR6 |
| Memory Bus | 128-bit |
| Engine Clock | Boost: 2460 MHz |
| Memory Clock | 17 Gbps |
| PCI Express | 4.0 x8 |

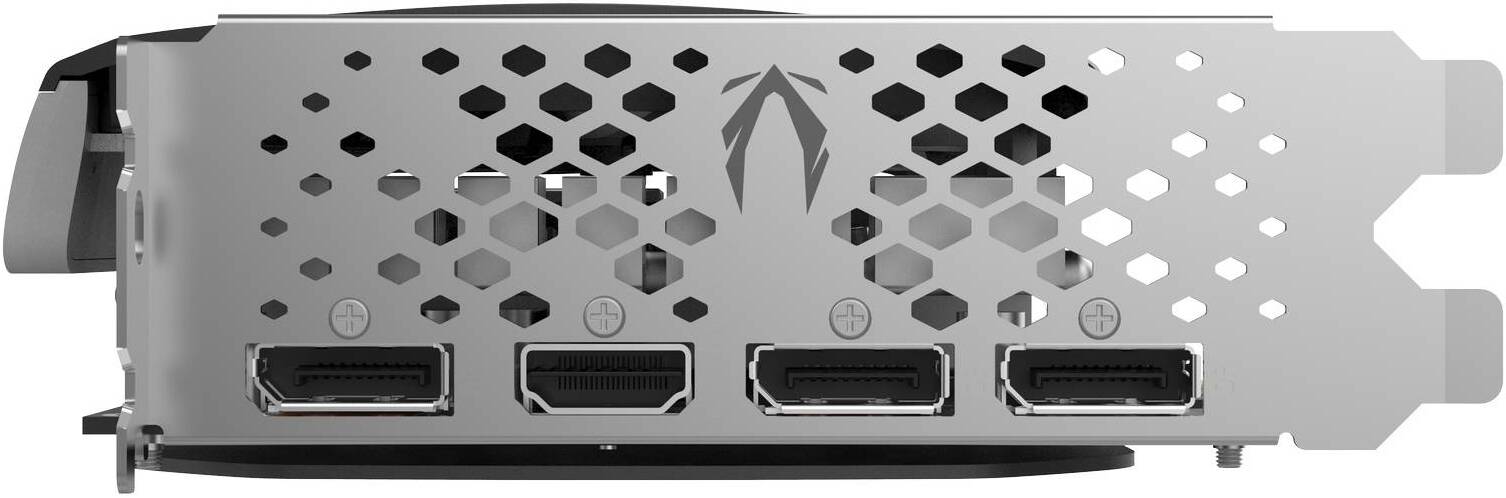

| Display Outputs | 3 x DisplayPort 1.4a (up to 7680x4320@60Hz) |
| 1 x HDMI® Connector* | |
| HDMI Features | *Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 500W |
| Power Consumption | 115W |
| Power Input | 1 x 8-pin PCIe |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | Air Cooled |
| Slot Size | 2 slot |
| SLI | N/A |
| Supported OS | Windows 11 / 10 (64-bit, v1809 November 2018 or later) |
| Card Length | 221.4mm x 122.7mm x 43.1mm / 8.7" x 4.8" x 1.7" |
Specifications for ZOTAC GAMING GeForce RTX 4060 Twin Edge Graphics Card, 8GB GDDR6 128-bit Memory, 2460 MHz Boost Clock, 17 Gbps Memory Clock, PCI E 4.0 x8, 3072 CUDA Cores, 3 x DP 1.4a / 1 x HDMI | ZT-D40600E-10M
General
Brand
Model
- GAMING GeForce RTX 4060 Twin Edge
Date first available
- 16 January, 2024
Shipping Weight
- 1.30 Kg
Shipping Dimensions
- 12.10 cm x 22.10 cm x 4.40 cm
Multi-GPU Support
- --
GPU
- RTX 4060
Memory Size
- 8 GB
Memory Interface
- 128 Bit
Memory Type
- GDDR6X
Effective Memory Clock
- 2460
D-SUB (VGA)
- No
HDMI
- Yes
DVI
- No
Display Port
- Yes
Form Factor
- --
Chipset Manufacturer
- NVIDIA Chipset
Interface
- PCI Express 4.0
TDP
- - W
Max Resolution
- 7680x4320
Maximum Display Support
- 4
Cooling
- fan
Power Connectors
- 1 x 8-pin PCIe
