MID TOWER CASE
Designed with ventilation in mind, this high-performance mid tower case delivers superior air flow while allowing for viewing of your front LED fans. Full tempered glass side panel showcases the inside of your rig. Comes with two additional vertical expansion slots, allowing for vertical graphics card installation.

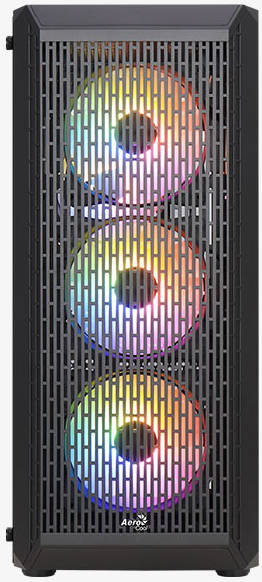

- Front panel with air vents delivers superior air flow and ventilation while allowing for viewing of your front LED fans

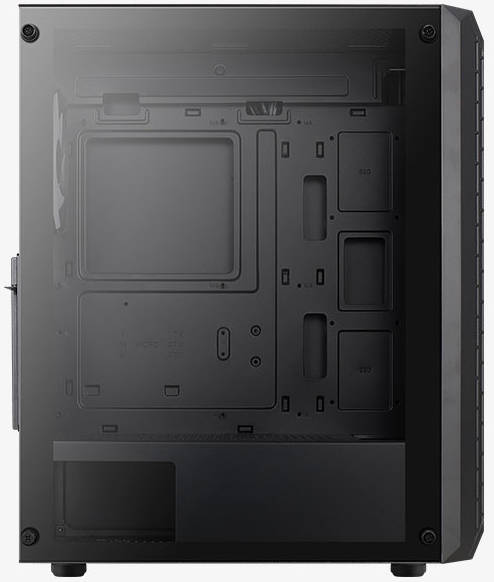

- Full tempered glass side panel showcases the inside of your rig
- Two additional vertical expansion slots allow for vertical graphics card installation
- Fan mounts on the PSU shroud support up to two 12cm fans for improved VGA cooling
- Supports liquid cooling in the front, top, and rear of the case
- Supports CPU cooler up to 160mm
- Supports high-end graphics cards up to 343mm (without front radiator)
SPECS
Specifications
| Model | Beam |
| Case Type | Mini Tower |
| Color | Black |
| Body Material | SPCC |
| Front Panel Material | ABS |
| Steel Thickness | 0.5mm |
| Motherboards | ATX/micro ATX/mini-ITX |
| Case Dimensions (Internal) | 205 x 470 x 350mm (W x H x D) |
| Case Dimensions (Overall) | 210 x 481.5 x 404mm (W x H x D) |
| 3.5” Drive Bays | 2 Max. (2 x 3.5”/2.5″) |
| 2.5” Drive Bays | 4 Max. (2 x 2.5” and 2 x 2.5”/3.5”) |
| Expansion Slots | 7+2 |
| GPU Clearance | Supports GPU up to 343mm (without front radiator) |
| CPU Cooler Clearance | Supports CPU cooler up to 160mm |
| Air Cooling | Front: 120mm x 3 or 140mm x 3 (Max.) Top: 120mm x 2 or 140mm x 2 (Max.) Rear: 120mm x 1 (Max.) PSU Shroud: 120mm x 2 (Max.) |
| Liquid Cooling | Front: 120/240/280/360mm Radiator (Optional) Top: 120/240/280mm Radiator (Optional) ((Fan + Radiator) thickness <53mm) Rear: 120mm Radiator (Optional) |
| I/O Ports | USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic. |
| Internal Cable Management Depth | 23.48mm |
| Power Supply | ATX PSU (Including cables, up to 189mm) (Optional) |
| EAN Code | Beam-G-BK-V1: 4711099471737 (Includes 1 x 12cm black fan) Beam-G-BK-V2: 4711099471744 (Includes 4 x 12cm FRGB fan) |
