Description
Y60
Modern Aesthetic Case
Why We Made This
- A new build should feel new
- 3-Piece panoramic glass with 3-times more satisfying plastic wrap removal.
- We know how much you just spent on that GPU, so we threw in the riser cable.
- Cold floor cooling keeps thermals lower than a partly cloudy day with a light breeze and you without your jacket.
- Check out this crown molding right there.
Product Features
Panoramic Views

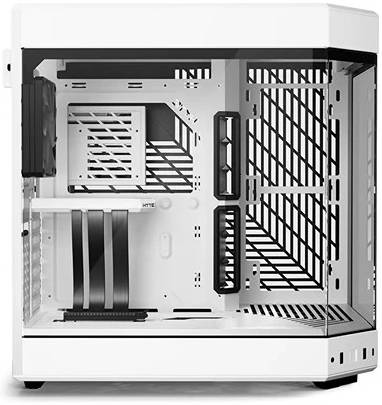

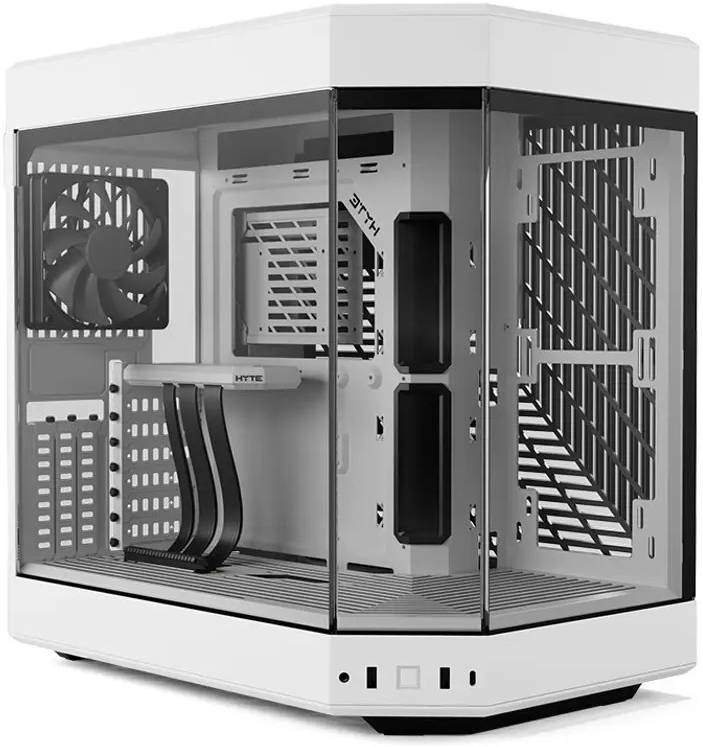

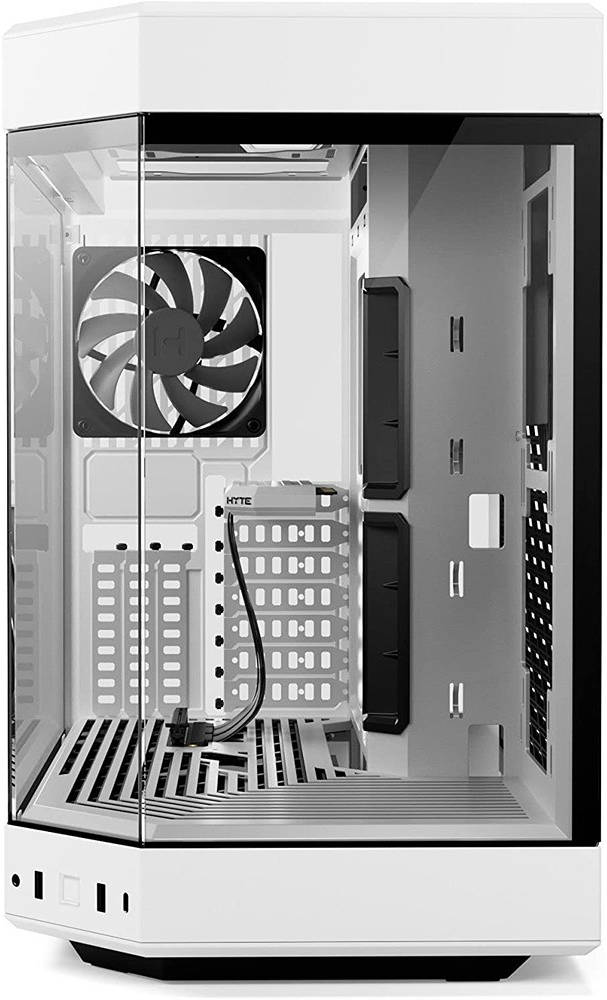

No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.
Exclusively Vertical GPU Mounted
Why would you want to see your graphics card any other way?
Included PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.
Antechamber Construction
Segment cables from thermal components and turn your PC into a work of art.
Cold Floor Cooling
Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.
Included Fans
The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.
Tech Specs
Type
Dual Chamber Mid-Tower ATX Case
Volume
60L
Case Dimensions
456mm (L) x 285mm (W) x 462mm (H)
Case Weight
9.6 kg
Case in Box Dimensions
535mm (L) x 372mm (W )x 540mm (H)
Case in Box Weight
11.3 kg
Case Materials
Tempered Glass, Steel, ABS
Color
White/Black, Black/Black, Red/Black
Motherboard Support
EATX, ATX, mATX, ITX
Power Supply
ATX up to 235mm in length
Video Card Max Dimensions
375mm length, 75mm thick (60mm or less recommended for best cooling)
Fan Support (Side)
2x 120/140mm
Fan Support (Top)
3x 120mm
Fan Support (Rear)
1x 120mm (1x 120mm, 1300 RPM included)
Fan Support (Bottom)
2x 120mm/140mm (2x 120mm, 1300 RPM included)
Radiator Support (Side)
120, 140, 240, 280mm up to 150mm thick
Radiator Support (Top)
120, 240, 360mm up to 30mm thick
Radiator Support (Rear)
120mm
CPU Cooler Height
160mm*
Storage
2x 3.5" HDD or 4x 2.5" SSD
Expansion Slots
3 + 6 half-height
PCI Express Riser
4.0 x 16 (included)
Interfaces
Front USB 3.0
2
Front USB 3.2 Gen 2 Type-C
1
Audio/Mic Jack
1
Dust Filters
Bottom, Side, Top
RGB Lighting
None
* When using an air cooler rather than liquid cooler, HYTE recommends the installation of 2 additional intake fans (not included) on the side mount of the Y60 for optimal airflow.
